ποΈ FabCheck: Structural FEA
2D Finite Element Analysis & Structural Design for Mobile
Design, Analyze, and Build with Confidence. FabCheck is a powerful 2D Finite Element Analysis (FEA) and structural design tool built specifically for engineers, fabricators, and builders.

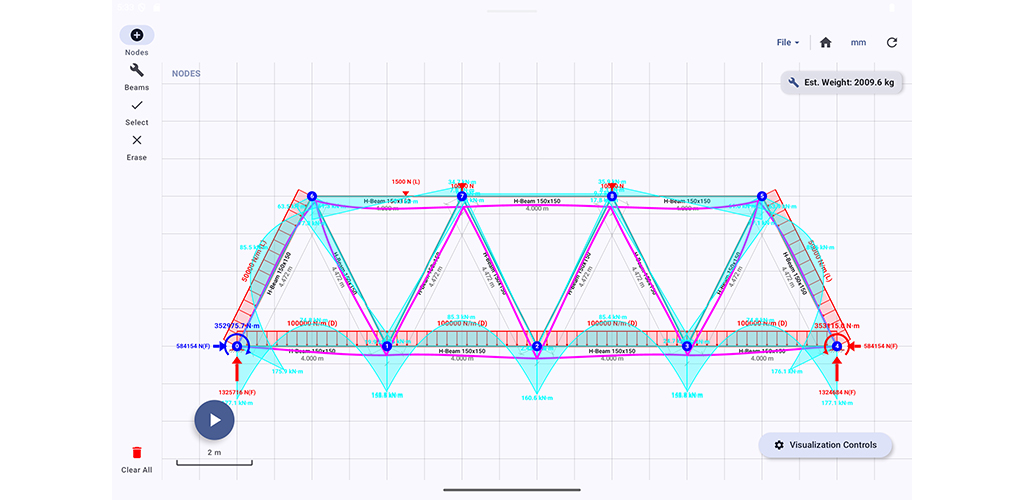

Whether you are designing a complex steel truss, checking beam deflections, or planning a custom frame, FabCheck provides a rapid, intuitive, tablet-optimized workflow right on your mobile device.
Draw your structures, apply loads, instantly visualize structural behaviors, and generate complete fabrication cut-lists in seconds.
- π Intuitive 2D modeling with grid-snapping
- ποΈ Point loads, UDL, UVL, thermal loads (ΞT)
- π Fixed/pinned/roller supports, settlements, hinges
- π² Standard sections + custom profiles (RHS, Pipe, I-Beam, Channel, Angle)

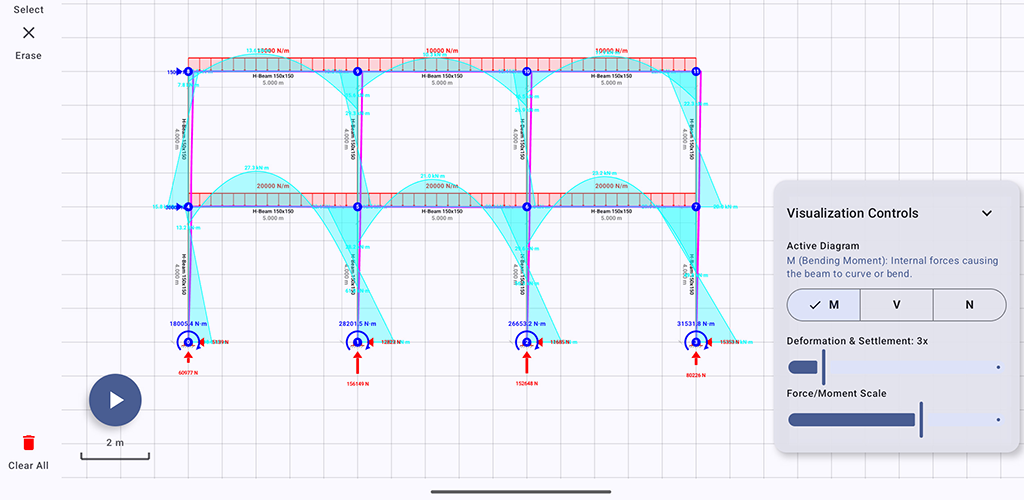

- π Real-time BMD, SFD, AFD, deflection diagrams
- ποΈ LRFD load combinations (Dead, Live, Wind, Snow)
- π Auto BOM / Cut List export to PDF & CSV
- βοΈ Weight estimation, Metric & Imperial units
Perfect for:
- π Overland DIY & off-road fabricators
- π Engineering students
- π Steel fabricators & welders
- ποΈ Architects & draftspersons
- π¨ DIY makers & home builders
